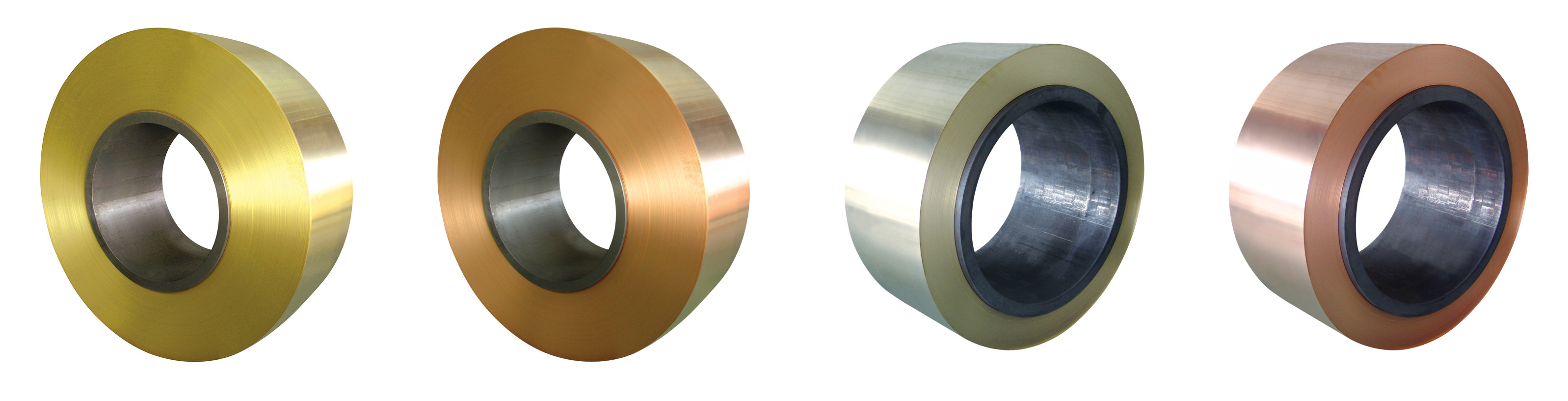

公司10万吨高精铜合金板带生产线，主要生产高精度引线框架专用铜带、接插件用铜带、电缆带、变压器带等高精尖带材，细分为青铜带、黄铜带、白铜带、紫铜带四大类产品。
一、铜及铜合金板材 Copper And Copper Alloy slab
|
合金 Alloy
|
牌号 Type No.
|
状态 Temper
|
热 轧 Hot rolling
|
执行标准 Applied Standard 厚度 (mm) Thickness
|
备注 Remark
|
|
厚度 (mm) Thickness
|
宽度 (mm) Width
|
长度 (mm) Length
|
|
紫铜 Red copper
|
T2
TU1
TP1
TP2
TAg0.1
|
R
|
6-15
|
400- 1000
|
Y Y2 M
|
0.2-0.49
|
|
|
16-20
|
400- 1000
|
1000- 3000
|
0.5-2.5
|
|
21-50
|
400- 1000
|
1000- 3000
|
3-9.5
|
|
50-120
|
400- 1000
|
1000- 3000
|
10-15
|
|
黄铜 Brass
|
H90 H80 H70 H68 H65 H62 Hpb
60-2 Hpb
59-1 HSn
62-1 HMn
58-2
|
R
|
6-15
|
400- 1000
|
Y2 Y M
|
0.2-0.49 0.5-2.5 3-8 9-10 11-15
|
|
|
16-20
|
400- 1000
|
1000- 3000
|
|
21-50
|
400- 1000
|
1000- 3000
|
|
51-80
|
400- 1000
|
1000- 3000
|
|
81-100
|
400- 1000
|
1000- 3000
|
|
青铜 Bronze
|
θSn
6.5-0.1 θSn
7-0.2 θAl 5 θAl 7 θSi
3-1 θCr
0.5
|
R
|
6-15
|
300- 600
|
Y M
|
0.4-0.49 0.5-2.5 3-8 9-10
|
|
|
16-20
|
300- 600
|
1000- 3000
|
|
白铜 Cupronickel
|
B19 B30 BZN
15-20
|
R
|
7-20
|
300-1 000
|
Y M
|
1-2
|
|
|
21-75
|
300- 1000
|
1000- 3000
|
|
合金 Alloy
|
牌号 Type No.
|
状态 Tem －per 宽度 (mm) Width
|
冷轧 Cold rooling
|
执行标准 Applied Standard
|
备注 Remark
|
|
长度 (mm) Length
|
|
|
|
紫铜 Red copper
|
T2
TU1
TP1
TP2
TAg0.1
|
300-600 300-600 300-600 300-600
|
1000-1500
|
GB/T17793-1999 GB/T14594-93
|
|
|
|
|
1000-2000
|
|
1000-3000
|
|
1000-3000
|
|
黄铜 Brass
|
H90 H80 H70 H68 H65 H62 Hpb
60-2 Hpb
59-1 HSn
62-1 HMn
58-2
|
300-600 300-600 300-600 300-600 300-600
|
1000-1500
|
GB/T 17793-199
|
|
|
|
|
1000-2000
|
|
1000-3000
|
|
1000-3000
|
|
1000-3000
|
|
青铜 Bronze
|
θSn
6.5-0.1 θSn
7-0.2 θAl 5 θAl 7 θSi
3-1 θCr
0.5
|
300-500 300-500 300-600 300-600
|
1000-1500
|
GB/T17793-1999
|
θSn
6.5-0.1 θSn
7-0.2 No hot rolling
|
|
|
|
1000-2000
|
|
1000-2000
|
|
1000-2000
|
|
白铜 Cupronickel
|
B19 B30 BZN
15-20
|
300-600
|
1000-1500
|
GB/T 17793-1999
|
|
|
|
|
3-10
|
300-600
|
1000-2000
|
|
|
二、铜合金普通带材 Common Copper Alloy-based Strip
|
合金 Alloy
|
牌号 Type No.
|
状态 Temper
|
厚度 Thicness (mm)
|
宽度 Width (mm)
|
执行标准 Applied Standard
|
备注 Remark
|
|
紫、黄铜 Red、copper brass
|
T2,TU1,TP2,TAg0.1, H90,H80,H70,H68, H65,H62,Hpb59-1
|
T ,Y, Y2
,M , TM
|
0.05-0.19 0.2-0.4 0.5-1.5
|
20-300 30-300 50-600
|
GB2059-2000
|
箔材foil：厚thinkness： 0.03-0.05 宽width： 50-200
|
|
青铜 Bronze
|
θSn
6.5-0.1 θSn
7-0.2 θAl 5 θAl 7
|
T ,Y , Y2
,M
|
0.08-0.19 0.2-0.4 0.5-1.0
|
30-300 50-300 80-600
|
GB2059-2000
|
|
|
白铜 Cupronickel
|
B19 B30 BZn
15-20
|
Y ,Y2
, M
|
0.1-0.9 1.0-1.5 1.6-2.0
|
50-300 100-300 100-500
|
GB2059-2000
|
|
三、高精度铜带 High-Precision Copper-based Strip 1、接插件专用铜带 Plug-in Connector Copper Strip
|
用途 Application
|
合金 Alloy
|
代号 Code
|
规格(mm) Speci-fication
|
成分% Comp－onent
|
|
电器与电子设备接插件铜合金 Plug-in connector copper alloy applied to apparatus and electric equipments
|
黄铜Brass
|
C26000
|
|
30Zn
|
|
锡黄铜 Stannum-Brass
|
C42500
|
|
9.5Zn 2.0Sn 0.2P
|
|
磷青铜 Phosphor-Bronze
|
C51000
|
|
5.0Sn 0.2P
|
|
硅青铜合金 Silicon-Bronze copper alloy
|
C65400
|
|
3.2Si 1.5Sn 0.1Cr
|
|
Ni-Sn铜合金 Nickel-Stannum copper alloy
|
C72500
|
|
9.5Ni 2.3Sn
|
|
接插元件Plug-in Connector
|
H65
|
C26800
|
|
Cn65 余Zn
|
|
θSn
6.5-0.1
|
C52000
|
|
Sn6.5 P0.1
|
|
BZn
15-20
|
C75400
|
|
15Ni 20Zn
|
|
重要性能 Significant perfomance
|
未来性能Future perfomance
|
|
密度 g/cm3
Density
|
弹性模量 Gpa Elasticity
|
电导率% IACS Conductance
|
代表特性 Representative characteristic
|
中强 Mezzo forte
|
高强 High strength
|
超高强 Ultra high strength
|
|
8.53
|
110
|
28
|
屈服极限 0.2% N/mm2
|
>600
|
>800
|
>1000
|
|
8.77
|
110
|
28
|
杨氏模量 KN/mm2
|
<130
|
<120
|
<120
|
|
8.86
|
110
|
15
|
电导率 %IACS
|
>20
|
>20
|
>15
|
|
8.55
|
117
|
7
|
B·W 弯曲R/t
|
>2.0
|
>1.0
|
>1.0
|
|
8.89
|
130
|
11
|
应力松弛率%150 1000Hr
|
<30
|
<20
|
<20
|
|
8.47
|
89-97
|
27
|
板厚公差（mm）
|
0.1-0.3±
0.005
|
0.1-0.2±
0.004
|
0.06-0.1±
0.003
|
|
|
113
|
|
|
|
|
|
2、引线框架材料 Material for Lead Frame
|
牌号 Type No.
|
代号 Code
|
状态 Temper
|
规格(mm) Specification
|
最大毛刺 (mm) maximum burr
|
最大侧弯 (mm/m) maximum camber
|
自然卷曲 (mm/m) natural wind
|
表面粗糙度 (Rnμm) surface roughness
|
抗拉强度 σb
Mpa
tensile strength
|
延伸率%
material elongation
|
|
厚差 thickness tolerance
|
宽差 width tolerance
|
|
KFC
|
C19210
|
H
|
0.15±0.009
|
±0.08
|
0.05
|
1.2
|
300
|
1.0
|
396
|
4
|
|
CDA 194
|
C19400
|
FSH
|
0.25±0.008
|
±0.050
|
0.025
|
0.8
|
72
|
1.0
|
520/560
|
4
|
|
CDA 70250（铜镍硅）
|
C7025
|
1/2H
|
0.152±0.005
|
±0.050
|
0.015
|
0.8
|
50
|
0.8
|
608/725
|
6
|
|
OFC （无氧铜）
|
C10200
|
1/2H
|
_
|
_
|
_
|
_
|
_
|
_
|
245-315
|
15
|
|
C151
|
C15100
|
1/2H
|
_
|
_
|
_
|
_
|
_
|
_
|
295-355
|
6
|
|
牌号 Type No.
|
电导率(%IAcs) specific conductance
|
热传导率 (W/mK) Thermal expansion
|
热膨胀系数 10-6
/℃ Thermal expansion coefficient
|
软化温度 (℃) Intenerate temperature
|
硬度 HV9 hardness
|
|
KFC
|
88-92
|
_
|
17.5
|
450
|
|
|
CDA 194
|
60
|
263
|
16.3
|
400
|
125-150
|
|
CDA 70250（铜镍硅）
|
35
|
172
|
17.3
|
_
|
145-160
|
|
OFC （无氧铜）
|
101
|
391
|
17.7
|
200
|
180-220
|
|
C151
|
95
|
360
|
17.7
|
500
|
90-105
|
|
|
|
|
|
|
80-110
|
尺寸公差与板型 Measure Tolerance And Shape Meter
|
项目 item
|
状态 Temper
|
厚度 (mm) Thickness
|
厚度公差 (mm) thickness tolerance
|
横向公差波动 (mm) transverse tolerance pulse
|
宽度公差 (mm) Width tolerance
|
毛刺 (mm) burr
|
|
数值 number
|
H. 1/2H 1/4H
|
0.25 0.20 0.15 0.1
|
±0.005
|
0.001
|
–0.1
|
≤0.01
|
|
项目 item
|
宽度翘曲 (mm) Width warp
|
侧弯 (mm) camber
|
板型 shape meter
|
光洁度 (μm) Smoo thness
|
卷内径公差(mm) coil inside diameter tolerance
|
卷重(Kg) Coil weight
|
|
数值 number
|
≤0.05
|
≤1/1000
|
≤5I
|
0.1-0.2
|
±2.0
|
＞80
|
3、其他高精带 Other High-Precision Strip
|
名称 Commodity
|
合金牌号 Type No.
|
规格状态 Specification and temper
|
重要技术特性 Significant technical characteristic
|
|
变压器带 transfomer strip
|
T2
|
0.1-2.5×14-650 (mm) M态
|
电导率conductance≥100%IACS 含铜量copper quantity>99.9%磷<0.03% 侧边毛刺≯0.01mm
|
|
异型铜带 profiled copper strip
|
Tp2
|
T型, U型用卷坯(with coil web)1..52×68 高速锻造(high-speed casting) 带坯公差 (band web tolerance)±0.03mm
|
硬度(hardness)HB
100-116 导电率(conductivity)≥90%IACS 90°弯曲(bend)>3
|
|
电缆带 cable strip
|
T2
|
0.15-0.6(mm) ×20-100(mm) ×1000-5000(m)长
|
铜(copper)≥99.95% P≤10PPm σb
190-330Mpa σ0.5
50-120 Mpa 导电率(conductivity)≥100%IACS
|
|
汽车水箱带 car water tank strip
|
H90,H65, T2
|
黄铜(brass)0.1-0.3 散热器板料(radiator)H65板(slab)0.5-0.6 散热管(radiator tube)0.085-0.15±0-0.002
紫铜(red copper)0.03-0.06(mm)紫铜波浪带, 散热片(cooling fin)0.03-0.06(mm)
|
无侧弯 无针孔 (no camper no pinhole)
|
